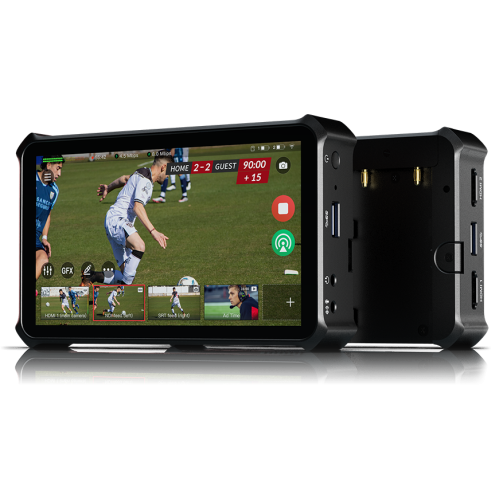

Magewell Director Mini

A portable, all-in-one live production and streaming device. The inputs support two HDMI and two USB webcam and IP streaming protocols including SRT and NDI|HX. It can record and do RTMP, SRT and NDI|HX streaming simultaneously.

Specifications and Features

Inputs

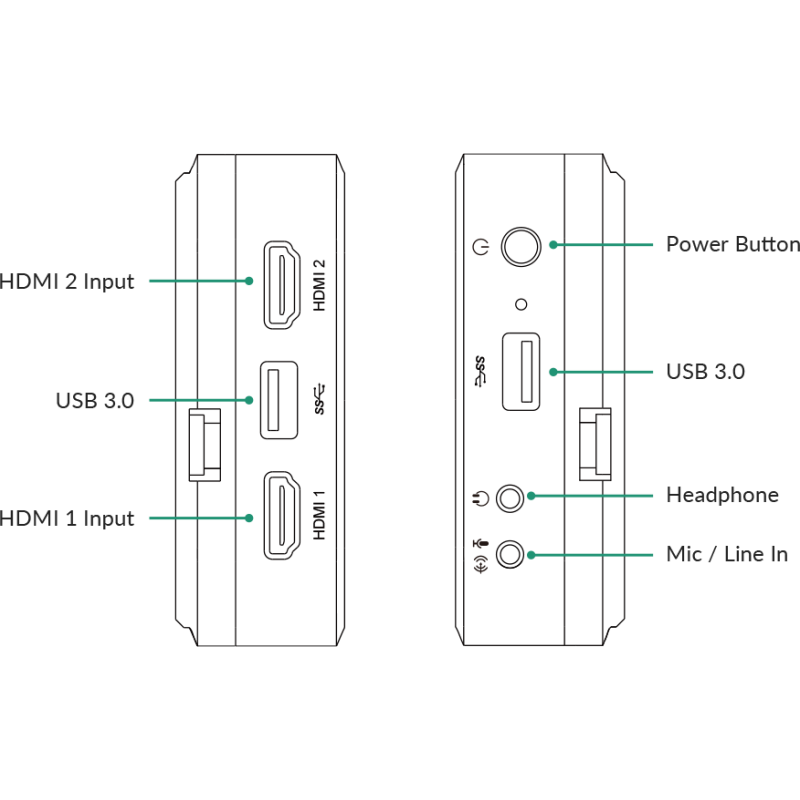

• Two HDMI inputs
• Two USB AV inputs
• Three simultaneous live IP sources (SRT, RTMP, RTSP, NDI^® High Bandwidth, NDI^® HX2, NDI^® HX3)
• Mobile camera (via Director Utility App)
• Media files (video, image, music, etc.)
• Webpage Inputs

Features

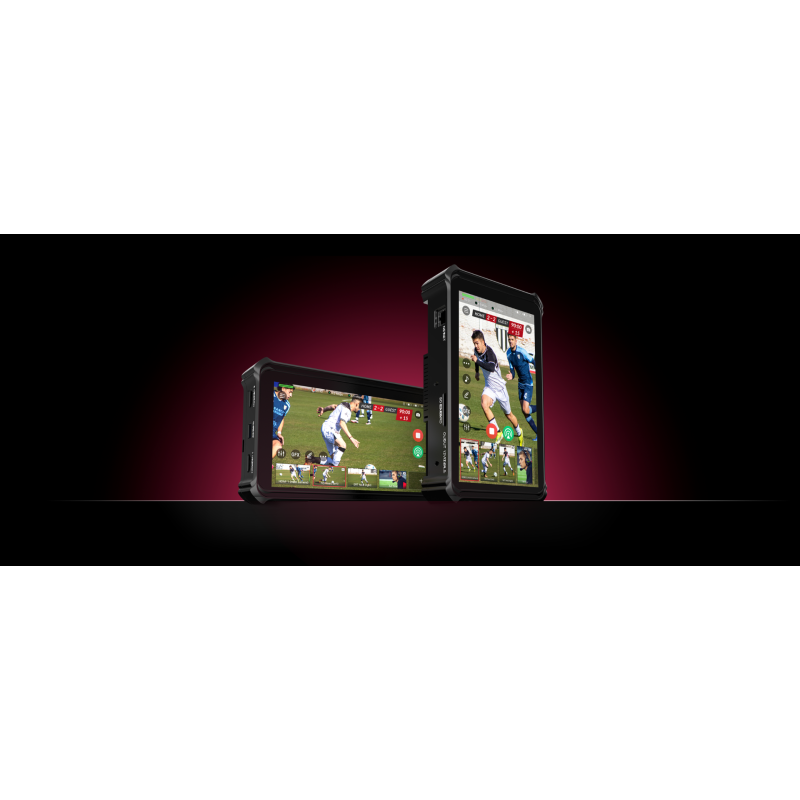

• Shows can be created in landscape (16:9) or portrait (9:16) mode
• A show can consist of multiple scenes
• Powerful production tools including chroma keying, graphics, telestration and more
• Display multiple graphics including titles, lower thirds, a scoreboard, timer, stopwatch and more

Streaming

• Natively supports streaming to YouTube, Twitch and Facebook Live
• Stream via SRT, RTMP, RTSP and NDI^® HX3
• Supports customizing encoding parameters and selecting the encoding source for ISO streaming
• Supports streaming to two destinations simultaneously

Recording and screenshot

• Split recording files by time or size
• Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source

Included Software

• Director Utility App

Network

• Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
• WiFi: 2.4G/5G, Station and Hotspot modes are both supported

Others

• 5.44" AMOLED capacitive touchscreen
• Warranty: 2 years for the whole device, 1 year for the screen
• Form factor: 147.2mm (L) x 90mm (W) x 28.5mm (H) or 5.79in (L) x 3.54in (W) x 1.12in (H)
• HTTP-based APIs for custom integration
• Director Mini OSC sample layout provided
