Magewell Director One

A portable, all-in-one live production and streaming device with a 7" screen. The inputs support two HDMI and two USB webcam and IP streaming protocols including SRT and NDI|HX. It can record and do RTMP, SRT and NDI|HX streaming simultaneously. Built-in 4G modem and 4G&WiFi antennas ensure stable and reliable network connectivity.

Specifications and Features

Inputs

• Two HDMI inputs
• Two USB AV inputs
• Three simultaneous live IP sources (SRT, RTMP, RTSP, NDI^® High Bandwidth, NDI^® HX2, NDI^® HX3)
• Mobile camera (via Director Utility App)
• Media files (video, image, music, etc.)
• Webpage Inputs

Features

• Shows can be created in landscape (16:9) or portrait (9:16) mode
• A show can consist of multiple scenes

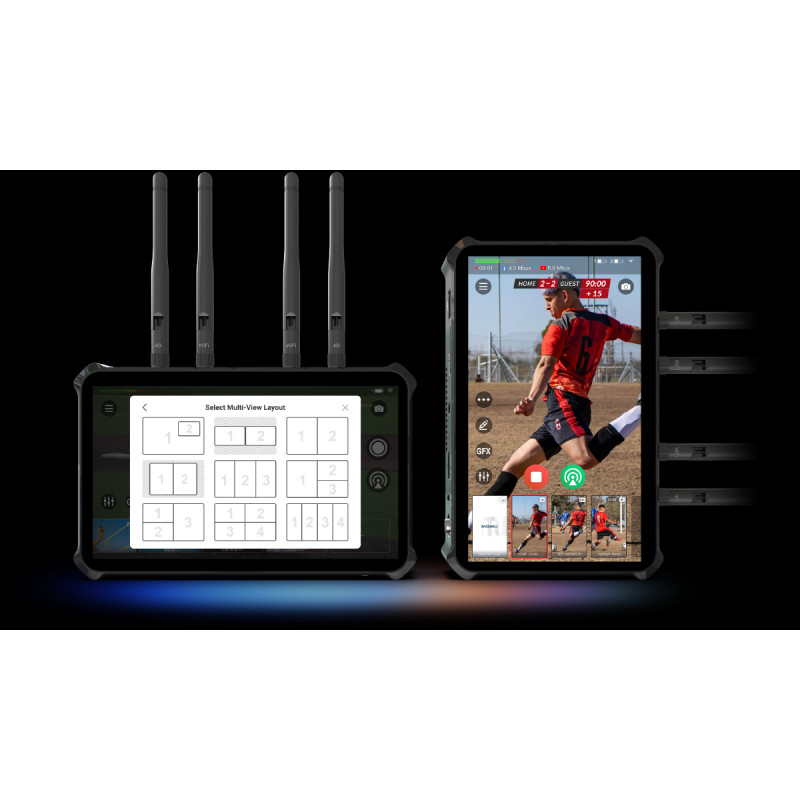

• Supports multi-view composition in one scene, providing prebuilt layouts for easy creation
• Powerful production tools including chroma keying, graphics, telestration and more
• Display multiple GFXs, including titles, lower thirds, a scoreboard, timer, stopwatch, etc.

Streaming

• Natively support streaming to YouTube, Twitch and Facebook Live
• Stream via SRT, RTMP, RTSP and NDI^® HX3
• Supports customizing encoding parameters and selecting the encoding source for ISO streaming
• Supports streaming to two destinations simultaneously

Recording and screenshot

• Split recording files by time or size
• Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source

Included Software

• Director Utility App

Network

• Supports network bonding
• Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
• WiFi: 2.4G/5G, Station and AP modes are both supported
• Cellular: 1* 4G SIM card slot & USB modem supported

Others

• 7" AMOLED capacitive touchscreen
• Screen brightness 800nit, contrast ratio 100000:1
• Warranty: 2 years for the whole device, 1 year for the screen
• Form factor: 185.2mm (L) x 117.2mm (W) x 32.8mm (H) or 7.29in (L) x 4.61in (W) x 1.29in (H)
